Off-grid living offers a unique kind of freedom—no monthly utility bills, no blackouts, no dependency on the grid. But with that freedom comes responsibility, especially when you’re wiring solar panels to your breaker box. Done right, your system will quietly power your life for years. Done wrong, it can put your safety and equipment at serious risk.
Whether you’re setting up a cabin in the woods or a self-sustaining homestead, understanding the nuances of off-grid solar wiring is essential.
Understanding the Components of an Off-Grid Solar System
Before wiring anything, it’s crucial to know what components make up your solar setup. The breaker box is just one cog in the machine.
- Solar Panels: These collect energy from the sun and convert it into DC electricity.
- Charge Controller: Regulates the voltage and current coming from the panels to protect the batteries from overcharging.
- Battery Bank: Stores electricity for use during nighttime or cloudy days.
- Inverter: Converts DC electricity into AC power, which most home appliances use.
- Breaker Box (Load Center): Distributes the converted AC electricity to outlets, lights, and appliances.
Each component must work in harmony. Wiring them improperly won’t just degrade performance—it can lead to electrical fires, component failure, or worse.
Safety Precautions Before Wiring
Before you lift a single tool, ensure all power sources are disconnected. Even solar panels produce voltage in daylight, so cover them or disconnect their leads.
Use insulated gloves, wear eye protection, and work on a dry surface. Double-check that your inverter is turned off. This is not a step to rush—solar electricity can be just as dangerous as grid power if mishandled.
Step-by-Step Guide: Wiring Solar Panels to a Breaker Box
Step 1: Connect the Solar Panels to the Charge Controller
Start by wiring the solar panels to the input terminals of the charge controller. Be sure to observe polarity—positive to positive, negative to negative. Improper polarity can damage the controller instantly.
Use MC4 connectors and solar-rated cables to handle outdoor conditions. Make sure all wires are firmly connected and shielded from potential moisture.
Step 2: Wire the Charge Controller to the Battery Bank
The controller’s output terminals connect to the battery bank, again respecting correct polarity. Fuse this line appropriately—typically with a DC-rated fuse or breaker—to prevent damage in case of a short.
This step allows the batteries to store the solar energy harvested throughout the day. Ensure the battery bank is ventilated and protected from excessive heat or freezing temperatures.
Step 3: Connect the Battery Bank to the Inverter
From the battery bank, heavy-gauge cables (sized according to your inverter’s amperage) run to the DC input terminals of your inverter. You’ll likely need lugs and terminal rings, tightened securely with a torque wrench.
At this point, the inverter can convert stored DC energy into usable AC power. Confirm all connections are tight—loose wires at this stage can create dangerous arcs.

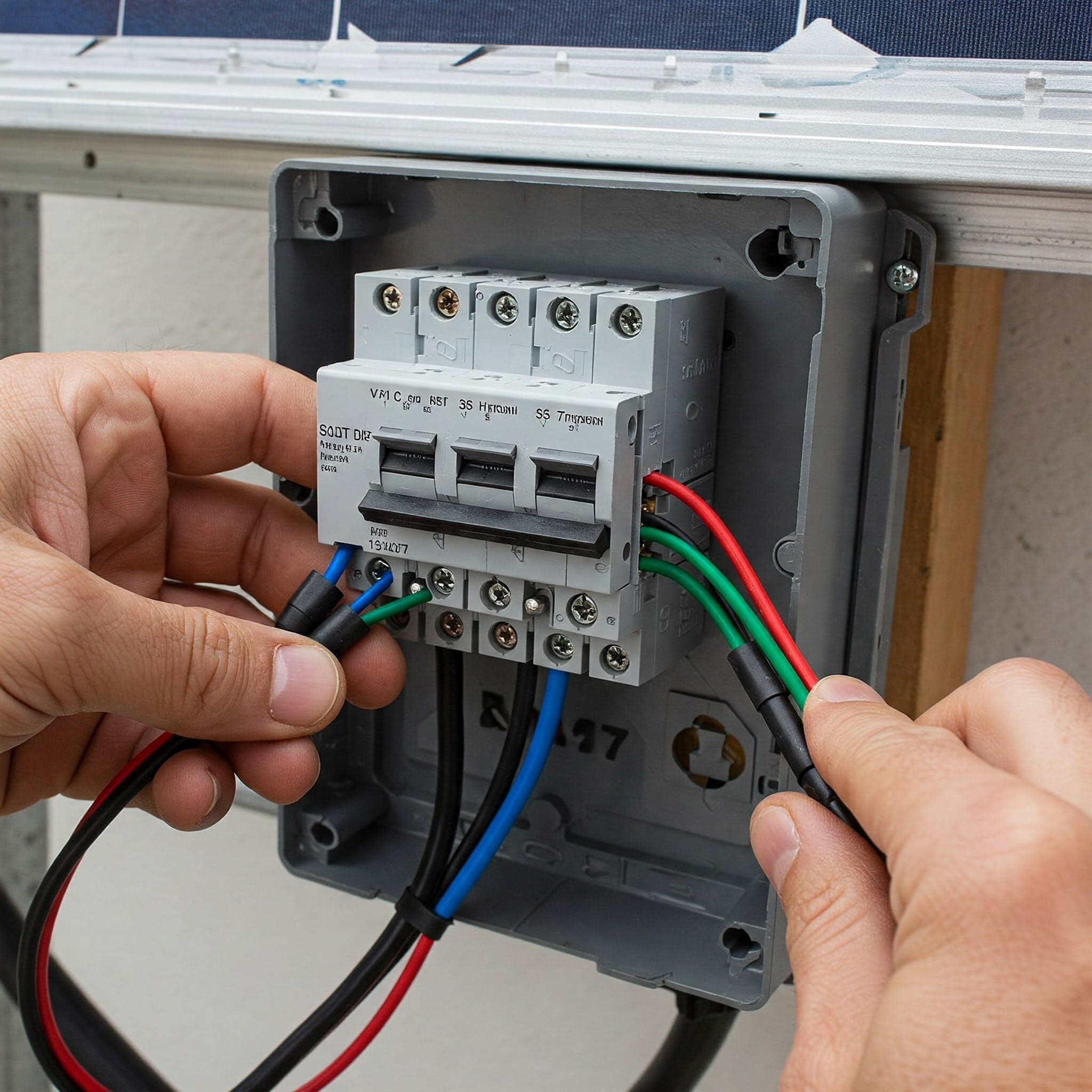

Step 4: Wire the Inverter to the Breaker Box
This is where off-grid meets home power distribution. The inverter’s AC output should be wired to a dedicated breaker in your panel. Use appropriately rated wire (e.g., 10-gauge or thicker) and connect the hot, neutral, and ground wires accordingly.
The breaker box should be a sub-panel unless your inverter is UL-listed for use as a main power source. Double-check with your local code requirements.
Label the solar circuit clearly inside the breaker box. This isn’t just for you—it helps future electricians or inspectors stay informed.
Managing Power Loads in Off-Grid Systems
Off-grid systems aren’t infinite power sources. Your breaker box may look like a grid-connected one, but you must be mindful of your load capacity.
Monitor:
- Surge Loads: Appliances like refrigerators or well pumps may require more power at startup than during operation.
- Continuous Loads: Devices like routers or LED lighting slowly drain stored energy.
- Phantom Loads: Chargers and idle electronics pull power even when not in use.
Use a power audit to prioritize what your system can realistically handle. You may need to install a load-shedding device or manually shut down non-essential circuits during cloudy days or high usage.
What to Do If Breaker Box Gets Wet
Water and electricity do not coexist peacefully—especially in off-grid systems where backup may not be immediately available.
If you notice moisture inside or around your breaker box:
- Do not touch the panel. Moisture can energize the metal housing.
- Shut down the inverter if safely accessible, cutting AC power.
- Investigate the source. Is water coming through a roof vent, condensation, or a plumbing leak?
- Call a qualified electrician to inspect and dry the system. Off-grid panels often operate in sheds, garages, or exposed locations—making them more susceptible to weather-related issues.
Moisture not only poses a shock hazard but can corrode internal contacts and degrade the lifespan of your system.
How to Reset Breaker Box After a Power Event
Occasionally, your off-grid system will overload, or a breaker will trip due to a power surge or appliance fault. Resetting must be done properly to avoid compounding the issue.
- Disconnect heavy appliances on the affected circuit.
- Switch off the breaker fully (to the OFF position), then return it to ON. If it trips again immediately, something downstream is causing a fault.
- Inspect the wiring, fuses, or the inverter. The issue might not lie in the breaker itself.
- Reset your inverter, if required. Some models need a manual reset after tripping due to overload or short circuit.
Take note of repeat trips—they indicate a systemic problem that needs deeper investigation.
Off-Grid Best Practices for Breaker Panel Installations
To maximize safety and performance in your off-grid system, consider the following:
- Use outdoor-rated breaker panels if the installation is in a shed or unconditioned space.
- Install surge protection devices on the AC side of your inverter.
- Label every circuit and include date of installation and voltage ratings.
- Elevate your panel off the ground to avoid water accumulation.
- Install a battery monitor that tracks energy usage and state of charge.
Future-proofing your breaker box setup helps ensure stable power delivery during emergencies or long-term isolation from grid infrastructure.
Final Thoughts
Living off-grid means trading convenience for independence. Wiring solar panels to your breaker box isn’t just about technical precision—it’s about trust in your system to power your day-to-day life, no matter what’s happening beyond your property line.
By understanding every component, respecting the flow of energy, and preparing for scenarios like moisture intrusion or system resets, you ensure your power stays steady, safe, and sustainable. Let the sun light your path—but let your wiring make that light reliable.
